Stationary Bandsaws
N276 DAXL
Bandsaw with column - three-phase- Automatic Down Feed
Max 265x200 mm
| Article | Code |
|---|---|
| N276 DAXL | 8488071 |

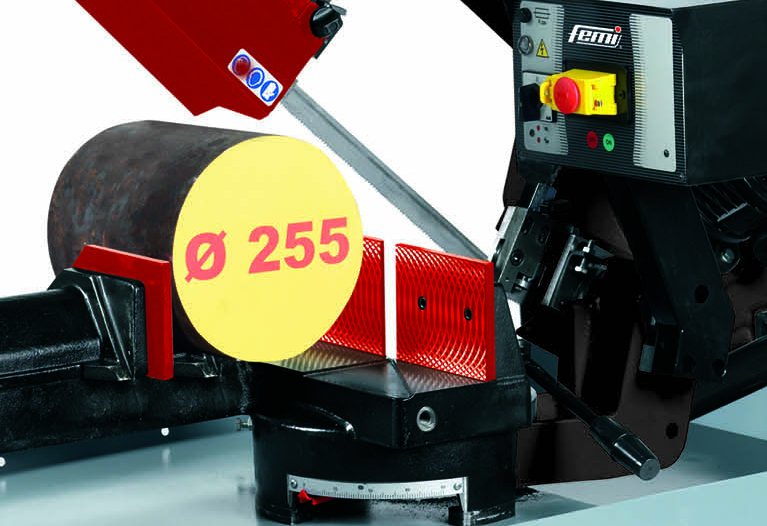

Cutting capacity
 |
 |
 |
|
|---|---|---|---|
| 0° | 265x200 mm mm | 255 mm mm | 200x200 mm mm |
| 45° | 200x160 mm mm | 175 mm mm | 170x170 mm mm |
| 60° | 115x100 mm | 110 mm | 100x100 mm |
| Arm downfeed | Automatic with hydraulic control system |
|---|---|
| Blade development (mm) | 2565x27x0.9 |
| Motor power (watt) | 1000/1300 |
| Electrical supply (Volt-Hz) | 400 - 50 |
| Weight (Kg) | 311 |
| Blade speed (mt/min) | 35/70 2 speeds |
| Toothing Z/1" | 8/12 |
| Packaging (mm) | 1410x870x1650 |
| Lubrication | Sì |
Technical features
Blade height 27 mm
Hydraulic control system for automatic down feed
Automatic or manual function
Adjustable left cutting angle from 0° to 60° equipped with quick stop device at 45° and 60° position
Blade tensioner with indicator lamp and safety microswitch for proper blade integrity and tensioning
Standard equipment
Adjustable bar-stop rod for mass produced cuts (L=600 mm)
Steel column with built-in tool holder
Column in assembly kit
