Wood and Alu Mitresaws

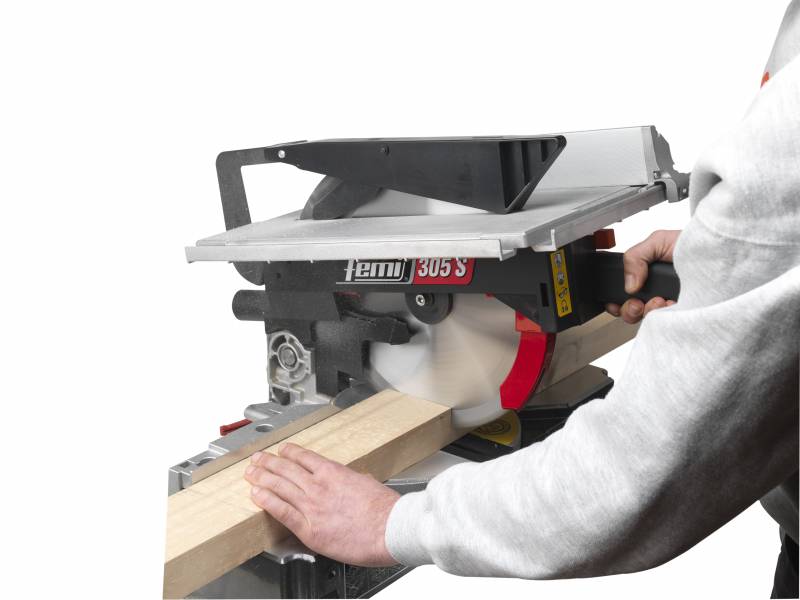

305S

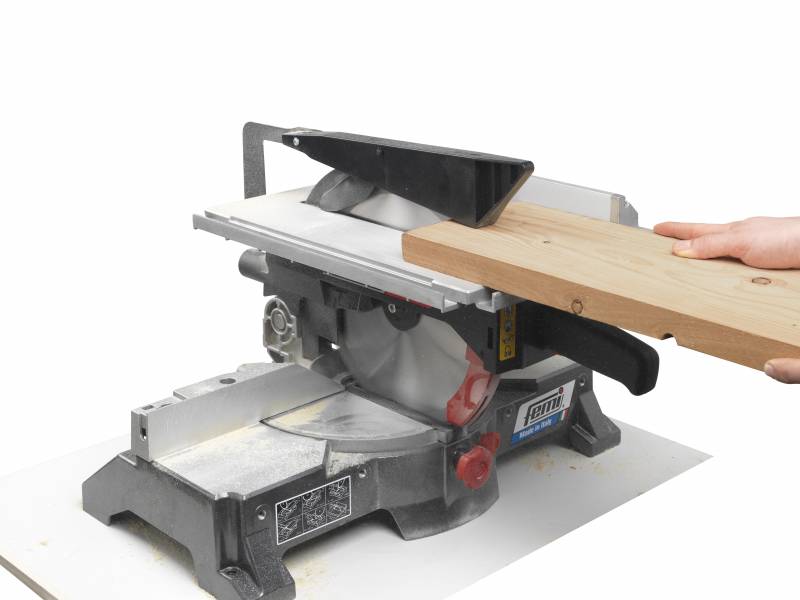

Mitresaw with upper table
Max 170x78 mm
| Article | Code |
|---|---|
| 305S | 8438022 |
Cutting capacity
 |
0° mm | 170x78 mm |
 |
45° sx - dx mm | 116x78 mm |
 |
inclinato 45° mm | 170x62 mm |
 |
composto 45°+45° mm | 95x62 mm |
| Max cut (mm) | 170x78 |
|---|---|
| Motor power (watt) | 1400 |
| Weight (Kg) | 29 |
| Packaging (mm) | 640X640X510 |
| Blade diameter (mm) | 305 |
| Motor | Induction |
| Upper cut height (mm) | 66 |
| RPM | 3000 |
Technical features
Very sturdy and robust structure: great reliability and cutting precision
- Movement of the turning table entirely on bearings
- Head return system protected with anti-fall spring
- Sheet metal frontal blade protection
- Silent 1400W induction motor
- Cutting angle adjustable from 0° to 45° right and left
Standard equipment
Blade with Widia inserts
- Adjustable bar stop-rod for mass-produced cuts
- Key set
- Supplementary protection and wood pusher
