Wood and Alu Mitresaws

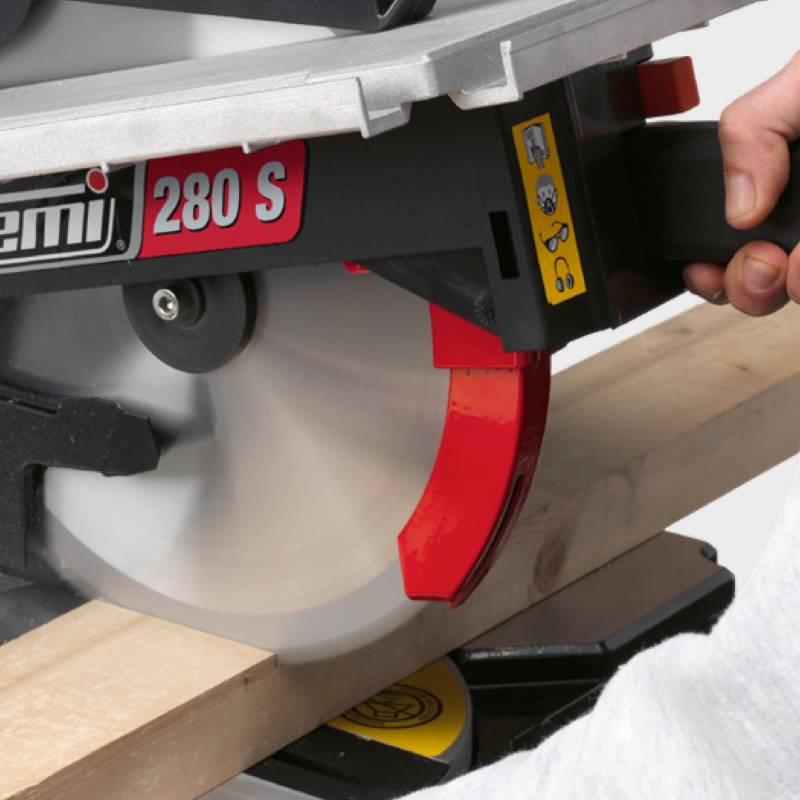

280S
Mitresaw with upper table
Max 150x70 mm
| Article | Code |
|---|---|
| 280S | 8428021 |
Cutting capacity
 |
0° mm | 150x70 mm |
 |
45° sx - dx mm | 101x70 mm |
 |
inclinato 45° mm | 150x60 mm |
 |
composto 45°+45° mm | 80x60 mm |
| Max cut (mm) | 150x70 |
|---|---|
| Motor power (watt) | 1300 |
| Weight (Kg) | 27 |
| Packaging (mm) | 640X640X510 |
| Blade diameter (mm) | 280 |
| Motor | Induction |
| Upper cut height (mm) | 58 |
| RPM | 3000 |
Technical features
The only mitersaw in the world with Ø 280 mm blade
- Movement of the turning table entirely on bearings
- Great cutting performances 150x70 mm
- Silent 1300W induction motor
- Ideal handle for ground working
- 2-positions upper work table cutting guide
- Double mitre cut 45°+45° left
Standard equipment
Blade with Widia inserts for the maximum material penetration
- Adjustable bar stop-rod for mass-produced cuts
- Key set
- Supplementary protection and wood pusher
